Three Dimensional Automatic Pipe Bending Machine To Hospital Equipment Processing
-- Machine characteristics
1. The CNC/NC model machine provides a memory of 200 programs, each program with 20 bends or angles.
2. The machine can produce many kinds of sophisticated application as customer requirements and goes a low labor cost.
3. It adopts touch control screen, numerical control mold group, dialogue operation and simple easy programme setting.
4. Steady and solid bed structure with hardly distortion.
5. Every file can set 16 angles of bending tube, the memorizer can store 60 groups of file.
Extra large CPU of Mitsubishi can store 400 groups of file editions. When the storage space is inadequate, transform software can be installed in the computer and then the files can be stored in hardware so as to expand edition groups indefinitely.
6. Windows operating system is installed in the industrial computer to match with Mitsubishi servo system. Therefore, apart from the advantage of Mitsubishi servo drive, it owns the convenience of file management of Windows operating system. It can also store the files in hardware or disk to indefinitely expand edition groups.
-- Machine details
CNC pipe bending machine is mainly used for electric power construction, public railway construction, boiler laying, bridges, ships, furniture, decoration and other aspects of pipe laying and repair, which has many functions, reasonable structure, simple operation, easy movement, quick installation and so on. The machine can also use oil pump as a hydraulic jack. CNC pipe bending equipment has the advantages of low price and convenient use, and it occupies the leading position in the domestic bending machine market. CNC pipe bender can bend the pipe under cold state (single mode) or two bend radius (double modes). It is widely used in the bending of various pipes and wires in the automotive and air conditioning industries.
-- Operating system instruction
Automatic mode interface. The automatic mode is that after the equipment has been manually adjusted (including mold, function, and parameters), the equipment can automatically carry out mass production of tubes.
1. File Name: Displays the name of the currently machined workpiece number.
2. A total of several bends and several bends, showing the effective number of bends and the current number of bends required for automatic bending.
3. Set value: Shows the value of Y feed, B corner, and C elbow in the fitting programming.
4.Current value: current Y feed, B corner, C bend value.
5. Elbow timing: The time taken for a tube to pass from the tube to completion of processing.
6. The preset output sets the number of pipes to be processed; the current output shows the number of completed pipes; it helps the user to master the production schedule. Press Zero to zero the current yield.
7. Before the automatic operation, you must first press the "Start" button, then follow the text prompts at the bottom of the interface to start the foot switch. If you need to pause during automatic operation, you can press the “pause” button or pause the foot switch, and then press “pause” or pause to stop the pedal switch to continue running. If “decomposition action” is ticked, the foot pedal must be pressed to start the next action every time you complete a step in the automatic operation.
8. In this interface you can switch to manual mode, single-bend mode, file management, I/O mode, or back to homepage (open machine interface).
-- Main technical parameter
| Maximum applicable carbon steel pipe | Ø50.8*2.0t |
| Maximum applicable stainless steel pipe | Ø44.4*2.2t |
| Maximum applicable copper/aluminum pipe | Ø60.0*2.5t |
| *Maximum feeding length | 2400mm |
| *Maximum coring length | 3300mm |
| Feeding mode | Clamping feeding |
| Directed feeding |
| *Maximum bending radius | 250mm |
| Maximum bending angle | 190° |
| *Settable bending angles of each pipe fitting | 36 |
| Bending mode | Hydraulic control |
| Working rate | Bending rate | Max 40°/sec |
| Rotating rate | Max 270°/sec |
| Feeding rate | Max 700mm/sec |
| Working accuracy | Bending angle error | ±0.5° |
| Rotating angle error | ±0.1° |
| Feeding length error | ±0.1mm |
-- Main application
Adapted material: steel pipe, stainless steel, copper pipe, aluminum pipe; rectangle pipe, square pipe, round pipe.
Recommended application industry: automobile fittings, oil pipe for brake, muffler, seats, motorcycle fittings, healthy equipment, air-conditioning, bicycle, steel furniture, sanitary wares, automobile, locomotive, motorcycle, ship, ship, petrochemical, electric power, natural gas, nuclear industry, boiler, vehicle, fitness equipment, sports goods and other fittings.
CNC pipe bending machine is the bending processing equipment for the application of aerospace, automobile, locomotive, motorcycle, ship, ship, petrochemical, electric power, natural gas, nuclear industry, boiler, vehicle, fitness equipment, sports goods and other fittings.

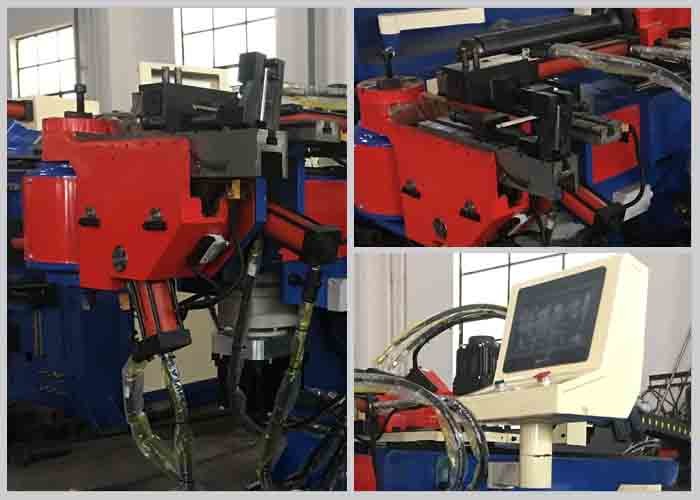

-- Pictures of machine
